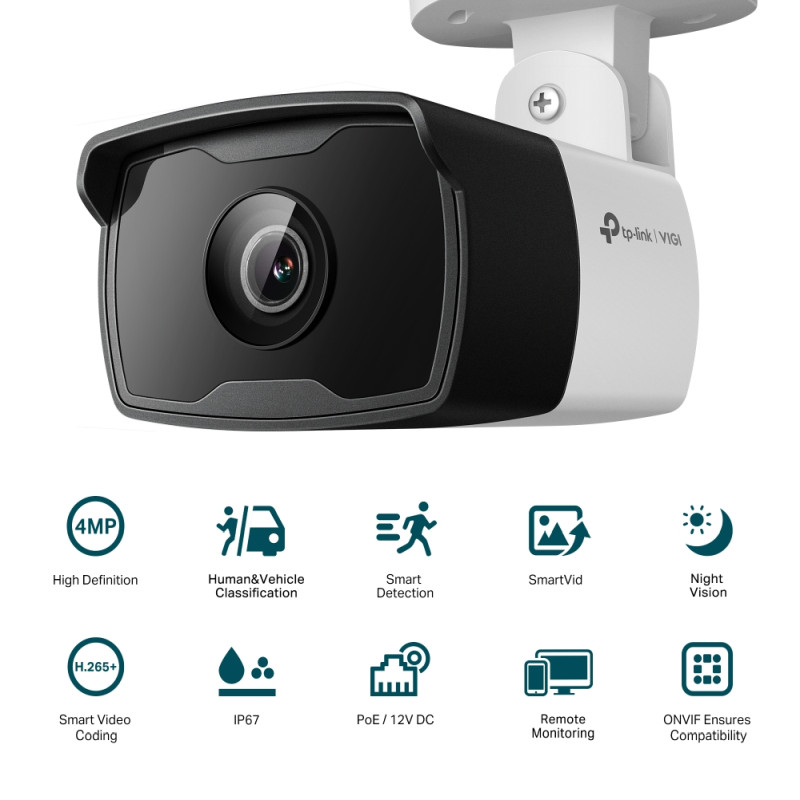

4MP Super-High Definition
– The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification
– Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection
– Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.

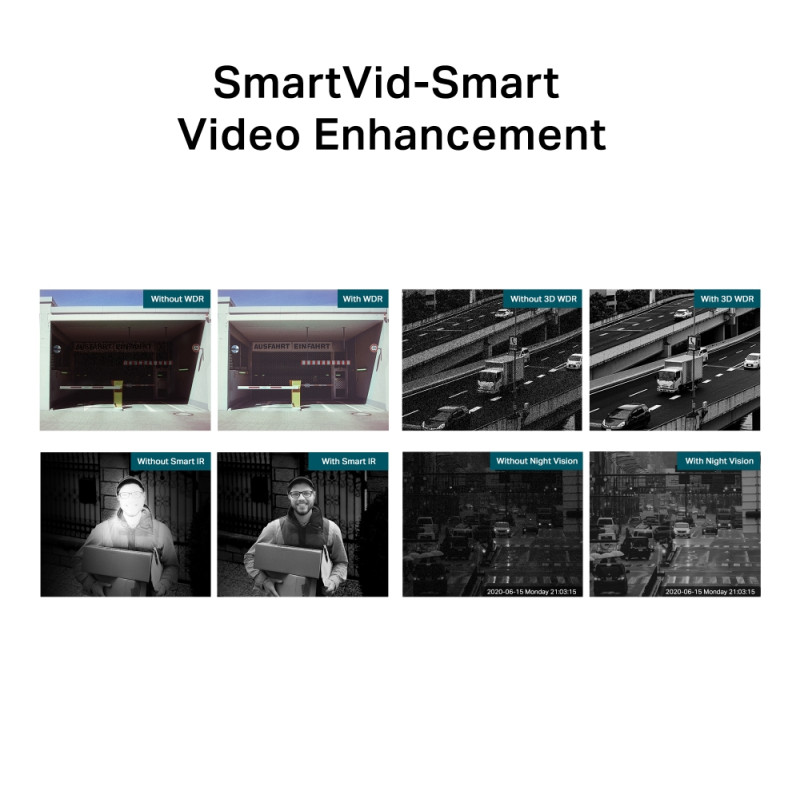

Smart Video Enhancement
– VIGI’ s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265+
– Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof
– Reliable IP67 for stable outdoor performance.
PoE/12V DC
– Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8/4/6 mm Lens
– Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
Flexible Management
– Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Specifications
CAMERA
– Image Sensor: 1/3” Progressive Scan CMOS
– Lens: 2.8 mm/ 4 mm/ 6 mm
– Day/Night Switch: Day/Night/Auto/Schedule-Switch
– Digital Noise Reduction: 3D DNR
– WDR: DWDR
– Weatherproof Rating: IP67
– IR Working Distance: 30m
– Shutter Speed: 1/3 to 1/10000 s
– Aperture
• 2.8 mm: F2.2
• 4 mm: F2.2
• 6 mm: F2.0
– Lens Mount: M12
– Viewing Angle:
• 2.8 mm, Diagonal FOV: 106.5°
• 4 mm, Diagonal FOV: 87.4°
• 6 mm, Diagonal FOV: 56°
– Slow Shutter: Yes
– Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
– Day/Night Mechanism: IR Cut Filter
NETWORK
– Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
– ONVIF: Yes
– API: ONVIF
– Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
– Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
– Web Browser
• Google Chrome 57 and above
• Firefox 52 and above
• Safari11 and above
• Microsoft Edge 91 and above
– Cloud: Yes
– Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
– Network Storage: NAS (NFS, SMB/ CIFS)
GENERAL
– Operating Temperature: -30–60 °C
– Storage Temperature: -40–60 °C
– Operating Humidity: 95% or Less (Non-Condensing)
– Storage Humidity: 95% or Less (Non-Condensing)
– Package Contents
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
– Dimensions( H X W X D ): 174 × 74 × 71 mm
– Material: Plastic
– General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
– Power Requirements
• 12V DC ± 5%, 5.5mm Coaxial Power Plug
• PoE (802.3af/at, class 0)
– Net Weight: 0.2 Kg
– Gross Weight: 0.35 Kg
– Power Consumption: 12V DC: Max 5W
– PoE: Class 0
– Power Supply:
• 12V DC ± 5%, 5.5mm Coaxial Power Plug
• PoE (802.3af/at, class 0)
– Protection: IP67
– Product Dimensions (L x W x H): 73× 174 × 71 mm
– Certifications: CE/BSMI/VCCI/ONVIF
INTERFACES
– Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
– Power: DC Power Port
ALARM AND EVENT MANAGEMENT
– Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
– Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
– Alarm Linkage: Message Push
– Output Notification: Message Push
VIDEO/IMAGE
Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
Frame Rate & Resolutions
– Main Stream
• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 2560×1440,2304×1296, 2048×1280, 1920×1080, 1280×720
– Sub-Stream
• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 640×480,352×288, 320×240
– Max. Resolution: 4MP (2560 × 1440)
– Video Streaming
• Main Stream
• Sub-Stream
– Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
– Image Enhancement: BLC/3D DNR/HLC/SmartIR
– Video Bit Rate. 64 Kbps to 4 Mbps
– Day/Night Switch: Day/Night/Auto/Schedule
SMART FEATURE-SET
– Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned Object Detection, Object Removal Detection, Vehicle Detection
– Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
– Linkage Method: Trigger Notification: ONVIF, HTTPS
– Region of Interest: 1 Region
ILLUMINATOR
IR LED
• Quantity: 2
• Range: 30m
• Wavelength: 850nm
– Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
LENS
– Type: Fixed Focal Lens
– Focal Length: 2.8 mm/4 mm/6 mm
– Aperture
• 2.8 mm: F2. 2
• 4 mm: F2.0
• 6 mm: F2.0
– FOV
• 2.8 mm: Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°
• 4 mm: Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7°
• 6 mm: Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56°
– Lens Mount: M12
DORI Distance
2.8 mm:
• Detect: 60 m (197 ft)
• Observe: 25 m (82 ft)
• Recognize: 12 m (39 ft)
• Identify: 6 m (20 ft)
4 mm:
• Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft)
6 mm:
• Detect: 120 m (394 ft)
• Observe: 50 m (164 ft)
• Recognize: 24 m (79 ft)
• Identify: 12 m (39 ft)
ANGLE ADJUSTMENT (MANUAL)
– Range: Pan: -90° to 90°
– Tilt: -90° to 90°
VIDEO
– Max. Resolution: 2560 × 1440
Main Stream
– Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
*Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
– Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution:640×480, 352×288, 320×240
* Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control: CBR, VBR
– Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
– H.264 Type: Main Profile/High Profile
– H.264+: Main Stream Supported
– H.265 Type: Main Profile
– H.265+: Main Stream Supported
– Video Bit Rate
• Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
– Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
– Image Enhancement: BLC/3D DNR/HLC/SmartIR
– Wide Dynamic Range: DWDR
– SNR: ?52 dB
– Image Parameters Switch: Yes
– Privacy Mask: Up to 4 Masks
– ROI: 1 Region
– OSD Setting: Yes
